TileMap to Navigation Grid in Godot

The tilemap is painted. The grid is not.

You painted a level in TileMapLayer. The walls are there. The water is there. The little bridge that only your game rules understand is there too.

If you came here searching for TileMap, use TileMapLayer in Godot 4.x; the old TileMap node has been deprecated since Godot 4.3.

Then you ask AStarGrid2D for a path and it walks straight through the scenery like nothing happened.

That is not a Godot bug. It is a missing bridge.

TileMapLayer stores your painted cells. AStarGrid2D stores a separate grid of pathfinding points. A navigation layer on a tile map belongs to Godot's navigation system, not to AStarGrid2D. If you want a grid pathfinder to respect the level you painted, you have to build that grid from the tile data.

Building a Pac-Man-style maze chase? This page turns the maze TileMapLayer into the grid; the complete small maze-chase starter connects that grid to buffered movement, pursuer policies, tunnels, and reservations, while the shared-field theory lives in the Dijkstra maps guide.

This article is that bridge.

The short answer

To build an AStarGrid2D from a TileMapLayer, set grid.region = tile_layer.get_used_rect(), match grid.cell_size to the TileSet tile size, call grid.update() once, then mark blocked cells with set_point_solid().

TileMapLayer cell coordinates can stay as AStarGrid2D point IDs. You usually do not need to normalize the map to (0, 0).

The basic pipeline is deliberately small:

1. Read the used rectangle from a TileMapLayer.
2. Create an AStarGrid2D with the same region and tile size.
3. Decide which cells are solid.
4. Write those cells with set_point_solid().
5. Ask for a path using tile coordinates as point IDs.

The negative-origin check

The important part is that you do not need to normalize the tile map to (0, 0).

I verified this in Godot 4.7 with a deliberately awkward map. AStarGrid2D accepted the negative region origin, accepted set_point_solid(Vector2i(-4, -3)), and returned paths using native negative point IDs.

That one detail removes a lot of coordinate bookkeeping. The local verification artifact for this article is available as tilemap-to-navigation-grid-verification.json. It is a correctness proof with pass/fail cases, not a performance benchmark.

Rect2i(-4, -3, 18, 12)

TileMapLayer navigation is not AStarGrid2D

Godot gives you more than one pathfinding system.

TileMapLayer can participate in Godot's navigation stack through navigation layers and NavigationServer2D. That is useful when you are using the engine navigation system.

AStarGrid2D is different. It is a grid pathfinder object. It does not inspect your tile map. It does not read your navigation polygons. It does not know that a wall tile means solid unless you tell it.

That separation is useful once you accept it. It means your grid can be driven by the rules of your game, not only by collision polygons or editor navigation data.

• A wall tile can be blocked in every mode.
• A water tile can be physically open but gameplay-blocked.
• A bridge tile can have collision but still be walkable by your units.
• Empty cells can be treated as walkable or solid depending on the game.

The minimal build step

Here is the shape of the build step. The two quiet decisions are grid.region = tile_layer.get_used_rect() and using tile coordinates directly as point IDs.

func build_grid_from_tilemap(tile_layer: TileMapLayer) -> AStarGrid2D:
    var used_rect := tile_layer.get_used_rect()
    var tile_size := tile_layer.tile_set.tile_size

    var grid := AStarGrid2D.new()
    grid.region = used_rect
    grid.cell_size = Vector2(tile_size)
    grid.offset = Vector2(tile_size) / 2.0
    grid.update()

    for y in range(used_rect.position.y, used_rect.position.y + used_rect.size.y):
        for x in range(used_rect.position.x, used_rect.position.x + used_rect.size.x):
            var cell := Vector2i(x, y)
            var solid := is_cell_solid(tile_layer, cell)
            grid.set_point_solid(cell, solid)

    return grid

Do not normalize unless you have to

A common instinct is to normalize the used rectangle to (0, 0). That gives the grid point IDs from (0, 0) to (width - 1, height - 1), while the tile map still has cells from used_rect.position to used_rect.end.

Every path request now needs translation. Every debug overlay needs translation. Every click-to-cell edit needs translation. And eventually one of those conversions gets missed.

The cleaner version is just this:

grid.region = tile_layer.get_used_rect()

The offset is a different problem

The grid's cell_size should match the TileSet tile size. The offset controls where the point sits inside the cell when converting between grid IDs and positions. For a normal square tile grid, center the point:

grid.cell_size = Vector2(tile_layer.tile_set.tile_size)
grid.offset = Vector2(grid.cell_size) / 2.0

Keep point IDs and world positions separate

The origin belongs in grid.region. The intra-cell center belongs in grid.offset.

If your TileMapLayer node itself is moved, scaled, or nested under a transformed parent, include that transform when converting cell IDs to world positions. The grid point ID can still be the tile cell. The drawn position is where transforms enter the picture.

For an untransformed layer, tile_layer.map_to_local(cell) should agree with an AStarGrid2D point position when grid.offset = cell_size / 2.

That gives the center of one cell. A 2x2 or rectangular unit needs the center of its complete footprint; the multi-tile movement guide derives that offset and keeps the anchor authoritative.

Deciding walkability

The grid does not care why a point is solid. It only needs a boolean. The question is where that boolean comes from.

Custom data is usually the game rule

For most game rules, custom data is the best source. In the TileSet, add a custom data layer such as walkable: bool, then each tile decides its gameplay meaning. The focused version of that rule lives in TileMapLayer custom data for walkability in Godot.

Water can be non-walkable without needing collision. A bridge can be walkable even if it has collision for some other system. For the numeric sibling of this import, use TileMapLayer custom data for movement costs; it owns typed cost layers, untouched float defaults, terrain IDs, and the validated weight handoff.

func is_cell_solid(tile_layer: TileMapLayer, cell: Vector2i) -> bool:
    var data := tile_layer.get_cell_tile_data(cell)
    if data == null:
        return true
    if not data.has_custom_data("walkable"):
        return true
    return not bool(data.get_custom_data("walkable"))

Physics and atlas IDs are narrower tools

Physics-derived walkability can work when collision means cannot walk here. It is convenient for prototypes, but it is easy to over-trust. Collision is not always navigation. A tile may have collision for projectiles, placement, cover, selection, or visual reasons.

Atlas IDs can also work for tiny prototypes where the art and the rule are genuinely the same thing. They get brittle once tile art changes or several tiles share the same movement behavior.

func is_cell_solid_by_physics(tile_layer: TileMapLayer, cell: Vector2i) -> bool:
    var data := tile_layer.get_cell_tile_data(cell)
    if data == null:
        return true
    return data.get_collision_polygons_count(0) > 0

Empty cells are a design choice

get_used_rect() gives you the rectangle that encloses used cells. Inside that rectangle, some cells may be empty.

For an authored dungeon, empty may mean solid void. For an overworld map, empty may mean open ground. Pick the policy explicitly. Do not let null tile data become accidental pathfinding behavior.

Call update() for shape, not for every solid cell

AStarGrid2D.update() rebuilds the grid after shape-related properties change. Use it after setting the region, cell size, offset, diagonal mode, and similar grid-shape configuration.

Then write solidity. Do not call update() again after every set_point_solid().

Solidity is point data. The grid shape did not change. Calling update() repeatedly there is the kind of small waste that hides in beginner code until the map gets bigger. This is the same point-data boundary used in the tower-defense path validation proof.

grid.update()

for cell in cells:
    grid.set_point_solid(cell, is_cell_solid(tile_layer, cell))

Put the conversion in one helper

In a real project, put this conversion in one small helper instead of spreading it across your scene script. The downloadable proof workspace includes a fuller version with skipped-cell reporting, point-write counts, custom-data mode, physics-layer mode, and empty-cell policy.

enum WalkabilitySource {
    CUSTOM_DATA,
    PHYSICS_LAYER,
}

enum EmptyCellPolicy {
    SOLID,
    WALKABLE,
}

func build_from_tilemap_layer(
        tile_layer: TileMapLayer,
        walkability_source: WalkabilitySource,
        empty_policy: EmptyCellPolicy) -> Dictionary:
    var used_rect := tile_layer.get_used_rect()
    var cell_size := tile_layer.tile_set.tile_size

    var grid := AStarGrid2D.new()
    grid.region = used_rect
    grid.cell_size = Vector2(cell_size)
    grid.offset = Vector2(cell_size) / 2.0
    grid.update()

    for y in range(used_rect.position.y, used_rect.position.y + used_rect.size.y):
        for x in range(used_rect.position.x, used_rect.position.x + used_rect.size.x):
            var cell := Vector2i(x, y)
            var solid := _is_solid(tile_layer, cell, walkability_source, empty_policy)
            grid.set_point_solid(cell, solid)

    return {
        "grid": grid,
        "used_rect": used_rect,
        "region": grid.region,
        "cell_size": cell_size,
        "offset": grid.offset,
    }

Asking for a path

Once the grid is built, path requests are simple. Because the region kept the TileMapLayer origin, start and goal are tile coordinates.

The path returned by get_id_path() is also a list of tile coordinates. If you need world positions for drawing or movement, convert with the layer transform.

func get_tile_path(grid: AStarGrid2D, start: Vector2i, goal: Vector2i) -> Array[Vector2i]:
    if not grid.is_in_boundsv(start) or not grid.is_in_boundsv(goal):
        return []
    if grid.is_point_solid(start) or grid.is_point_solid(goal):
        return []
    return grid.get_id_path(start, goal)

func cell_center(tile_layer: TileMapLayer, cell: Vector2i) -> Vector2:
    return tile_layer.map_to_local(cell)

var world_pos := tile_layer.to_global(tile_layer.map_to_local(cell))

Runtime changes

If the tile map changes at runtime, rebuild the affected navigation data. For a small map, rebuilding the whole AStarGrid2D is often fine. That is exactly what the demo does: you paint terrain, the grid rebuilds, and the walker reroutes.

Once the authored grid is initialized, the runtime AStarGrid2D update contract shows how to change doors, blockers, and temporary costs without rebuilding structure, and how to replay point layers after a real resize. The broader dynamic-blocker guide covers which cached routes to invalidate and when to queue their repaths.

PathForge is built around that kind of work: dynamic blockers, movement ranges, editor diagnostics, and dirty navigation updates for games where movement is part of the design, not a decorative line on the floor.

What the proof demo shows

The interactive demo for this article is deliberately small. It is a paint sandbox, not a benchmark.

Measurement-gap: the published artifact is a correctness verification harness, not a timing dataset. Add Dataset schema only after reproducible performance captures exist.

The default Mismatch preset has water and bridge tiles outlined in magenta. Switch between Custom data and Physics layer and the derived grid changes. Switch from Native (-4,-3) to Ignore offset and the demo stamps MISALIGNED across the board.

1. A painted TileMapLayer can be converted into an AStarGrid2D.
2. get_used_rect() can be used directly as the grid region.
3. Negative tile coordinates can remain native grid point IDs.
4. Custom-data walkability and physics-layer walkability can disagree.
5. set_point_solid() writes point data after one shape update().

The offset still

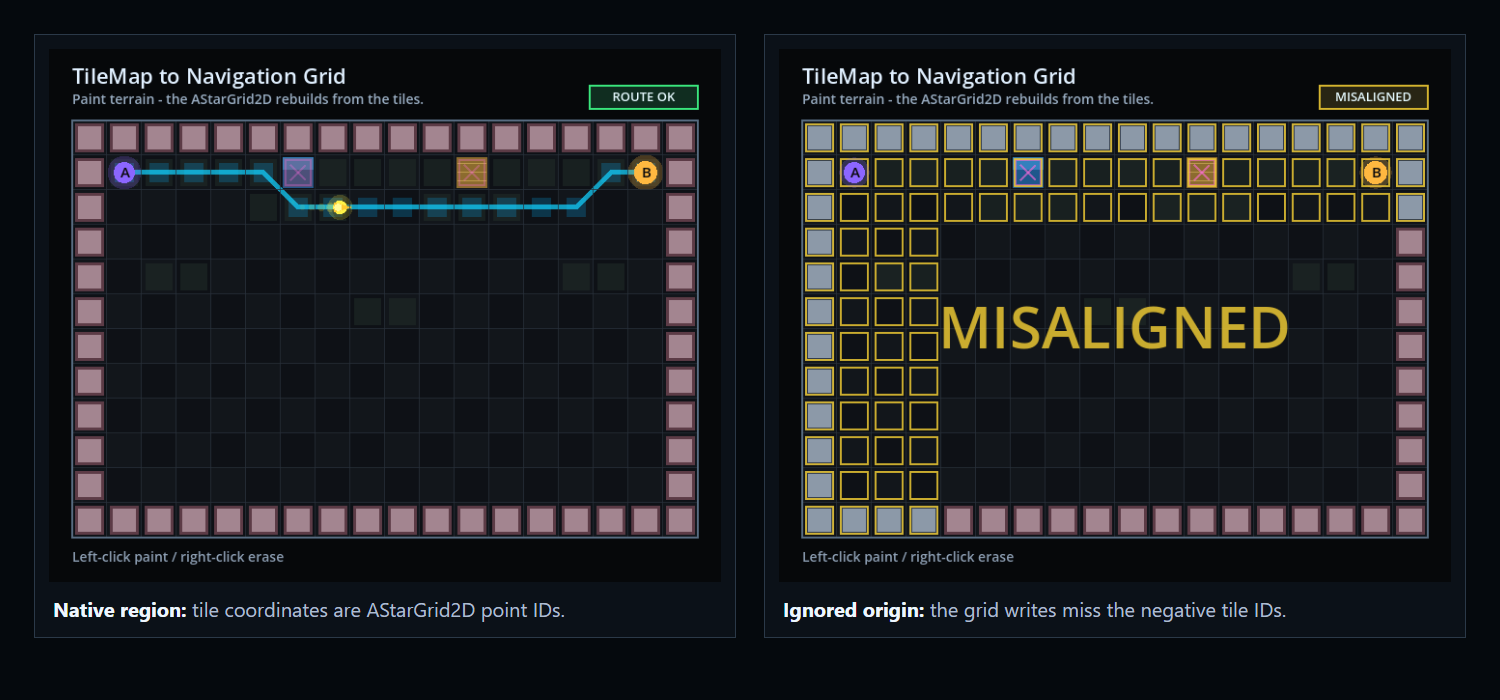

The offset issue does not read well in motion, so the proof package captures it as a separate still. The left side keeps the native region. The right side ignores the origin and shows the misaligned result.

Common failure modes

These are the boring ones to check before rewriting the pathfinder.

The grid starts at zero, the tile map does not

Symptom: the path appears shifted, skipped, or empty when the map has negative coordinates or a non-zero used rectangle.

Fix: use the used rectangle as the grid region: grid.region = tile_layer.get_used_rect().

The path ignores walls

Symptom: get_id_path() returns a route through blocked tiles.

Fix: make sure you call set_point_solid() after grid.update(), and make sure your walkability rule reads the correct tile data.

Physics and custom data disagree

Symptom: physics-layer mode and custom-data mode produce different routes.

Fix: decide which source represents gameplay. If collision and movement are not the same rule, use custom data for movement.

Empty cells behave strangely

Symptom: paths cut through holes in the authored map, or refuse to use unpainted ground.

Fix: choose an empty-cell policy. Make it visible in code.

update() is inside the cell loop

Symptom: rebuilding is slower than it needs to be, or point data disappears after you write it.

Fix: configure shape, call update() once, then write point solidity.
