Pac-Man-Style Ghost AI in Godot: Build the Full Maze Chase

The direct answer

Build a Pac-Man-style maze chase in Godot around committed grid cells. Keep the maze topology in a TileMapLayer-backed board, store each actor's current cell and target cell, and interpolate only the visible Node2D position. Buffer the player's requested direction so the turn can be accepted before the next intersection.

For several pursuers chasing the same player, rebuild one player-centered Dijkstra field when the player commits to a new cell. Every direct pursuer can read that same field and choose one legal downhill neighbor. A different personality changes the target: a cell ahead of the player, a scatter corner, a target reflected around another pursuer, or a distance-dependent switch.

During ordinary movement, reject immediate reversal unless the pursuer reaches a dead end. Before the next pursuer chooses, reserve the target cell selected by the previous one. Treat a wrap tunnel as a real graph edge in both movement and field expansion.

A ghost needs a target policy, not a private pathfinder.

Build the tutorial in this order

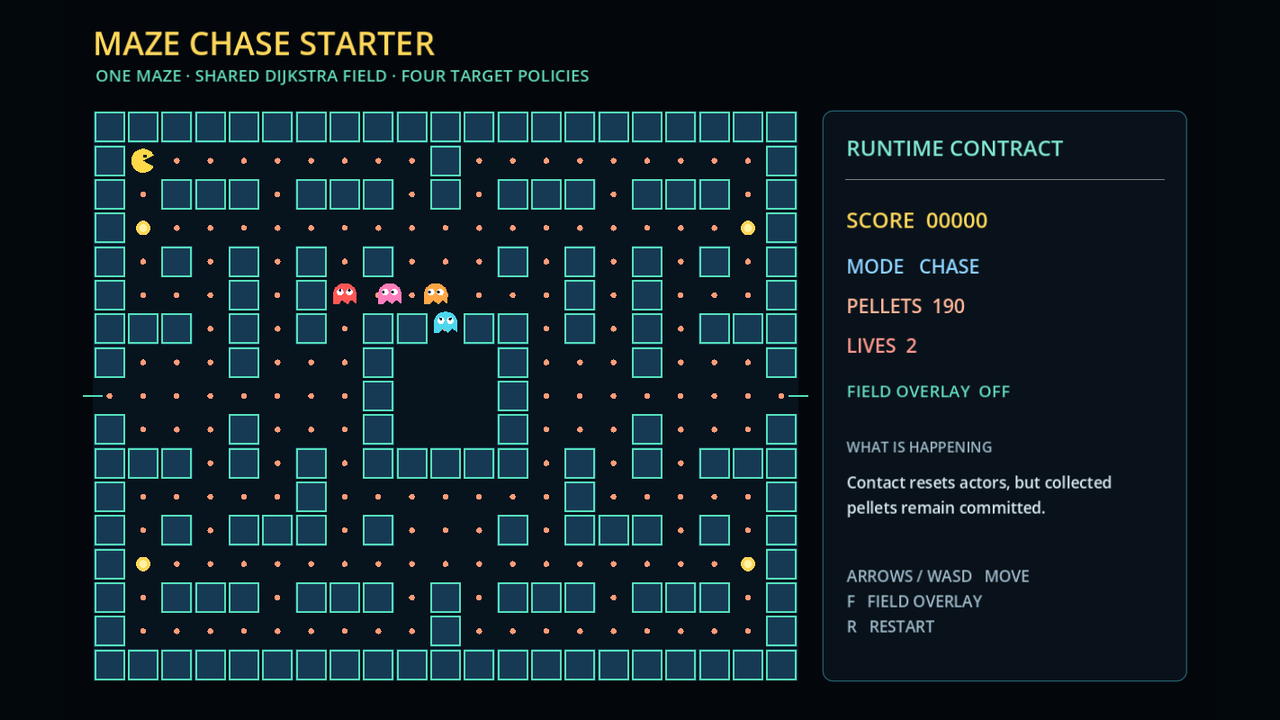

The Web player above is the assembled tutorial result. Work through these layers in order so each step leaves the scene runnable before the next system is added.

If your painted TileMap import is the part you need to replace, use TileMap to Navigation Grid in Godot. For deeper field math, continue with Dijkstra Maps for Roguelike AI. This tutorial stays on the complete small game loop.

Use five small layers

The downloadable scene keeps these responsibilities in four scripts: maze_board.gd, grid_actor.gd, maze_rules.gd, and maze_chase_demo.gd.

Every code block below is an exact fragment from those packaged files. The complete project and verifier are in the download.

Keep the authored board readable

The starter uses a MazeBoard that extends TileMapLayer. Its original 21×17 maze lives in the scene as exported layout_text; the @tool board draws it in the editor before the game runs. This avoids imported art and keeps the topology inspectable in one file.

This is an asset-free teaching choice, not the only production workflow. If your maze is painted with TileSet custom data, replace parse_layout() with the normalized cell import from the TileMap-to-grid guide. Keep the rest of the movement and AI contracts unchanged.

The two cached values matter. A field scan asks for many neighbors; it should not recalculate the board width and wrap rows inside every neighbor lookup.

func _refresh_layout() -> void:
	rows = MazeRulesScript.parse_layout(layout_text)
	_grid_size_cache = MazeRulesScript.grid_size(rows)
	_wrap_rows_cache = MazeRulesScript.wrap_rows(rows)
	if tile_set == null:
		tile_set = TileSet.new()
	if tile_set != null:
		tile_set.tile_size = Vector2i(cell_size, cell_size)
	queue_redraw()

Keep the cell authoritative

Each GridActor stores cell, target_cell, direction, and is_moving. The visible position interpolates between centers. cell changes only after the move finishes:

The Boolean return is the commit signal. The game uses it to collect a pellet, rebuild player-dependent fields, and resolve contact once the new cell is real.

func advance(delta: float) -> bool:
	if not is_moving:
		return false
	_move_elapsed += delta
	var ratio := clampf(_move_elapsed / move_duration, 0.0, 1.0)
	position = _move_start.lerp(_move_target, ratio)
	if ratio < 1.0:
		return false
	cell = target_cell
	position = _board.cell_to_local_center(cell)
	is_moving = false
	return true

Buffer the player's next turn

Input actions update _buffered_direction. At each committed cell, the mover tries that request first and continues straight only when the requested turn is still blocked:

The exact keyboard, D-pad, swipe, or touch surface is separate. All of them should set the same buffered cardinal request.

func _update_player(delta: float) -> void:
	var committed := player.advance(delta)
	if committed:
		_collect_player_cell()
		_rebuild_player_field()
		_check_contacts()

	if player.is_moving:
		return

	if _can_move(player.cell, _buffered_direction):
		player.begin_move(board.neighbor(player.cell, _buffered_direction))
		return
	if _can_move(player.cell, player.direction):
		player.begin_move(board.neighbor(player.cell, player.direction))

Do I need AStarGrid2D for every pursuer?

AStarGrid2D is appropriate when one actor needs one point-to-point route. Several pursuers chasing the same player ask a different-shaped question: from every reachable maze cell, which neighbor leads toward this one target?

The AStarGrid2D complete reference covers the point-to-point API. This tutorial uses a shared field because it needs a next-step answer everywhere on a small maze.

Build one field from the target

The solver seeds the target at zero and expands outward through cardinal neighbors. A middle row can wrap because the same topology helper is used during expansion:

The full Dijkstra-map guide owns weighted fields, source bias, composed maps, flee-map theory, and INF-safe scoring. The starter keeps uniform cardinal cost so the integration remains visible.

static func build_field(
		rows: PackedStringArray,
		targets: Array[Vector2i]
) -> PackedInt32Array:
	var size := grid_size(rows)
	var field := PackedInt32Array()
	field.resize(size.x * size.y)
	field.fill(INF)
	var wrapping := _wrap_rows_fast(rows, size)
	var frontier := PackedInt32Array()
	var read_index := 0

	for target: Vector2i in targets:
		if not _is_walkable_fast(rows, target, size):
			continue
		var index := _index_of(target, size.x)
		if field[index] == 0:
			continue
		field[index] = 0
		frontier.append(index)

	while read_index < frontier.size():
		var current_index := frontier[read_index]
		read_index += 1
		var current := Vector2i(
				current_index % size.x, current_index / size.x)
		var next_cost := field[current_index] + 1
		for direction: Vector2i in CARDINALS:
			var next := _neighbor_fast(current, direction, size, wrapping)
			if not _is_walkable_fast(rows, next, size):
				continue
			var next_index := _index_of(next, size.x)
			if next_cost >= field[next_index]:
				continue
			field[next_index] = next_cost
			frontier.append(next_index)

	return field

Rebuild on committed player cells

The player field changes when the player enters a new cell. Policy fields depending on that player state are invalidated at the same boundary:

Do not rebuild because one pursuer advanced one cell. Reading the field does not invalidate it. The flee field is also absent during ordinary play; it is built only while frightened mode needs it.

func _rebuild_player_field() -> void:
	player_field = MazeRulesScript.build_field(board.rows, [player.cell])
	if _mode == MODE_FRIGHTENED:
		flee_field = MazeRulesScript.build_flee_field(
				board.rows, player_field)
	_field_cache.clear()
	board.set_field(player_field)

Let each pursuer choose one legal neighbor

At a cell boundary, a pursuer reads its field and checks at most four neighbors. Ordinary movement rejects the immediate reverse direction. If that leaves no legal choice, the function retries once with reversal allowed:

CARDINALS has a stable order, so equal field values do not depend on Dictionary iteration or scene-tree order.

static func choose_step(
		rows: PackedStringArray,
		cell: Vector2i,
		current_direction: Vector2i,
		field: PackedInt32Array,
		occupied: Dictionary,
		allow_reverse: bool = false
) -> Vector2i:
	var size := grid_size(rows)
	var wrapping := _wrap_rows_fast(rows, size)
	var best_cell := cell
	var best_cost := INF
	var reverse := -current_direction

	for direction: Vector2i in CARDINALS:
		if not allow_reverse and current_direction != Vector2i.ZERO \
				and direction == reverse:
			continue
		var next := _neighbor_fast(cell, direction, size, wrapping)
		if not _is_walkable_fast(rows, next, size) or occupied.has(next):
			continue
		var cost := field[_index_of(next, size.x)]
		if cost < best_cost:
			best_cost = cost
			best_cell = next

	if best_cell == cell and not allow_reverse:
		return choose_step(rows, cell, current_direction, field, occupied, true)
	return best_cell

Personality comes from the target policy

The four pursuers share the same movement code. Their policy changes the field they read:

_field_for_target() normalizes a requested target to a legal cell and caches the result for the current player revision. A different personality does not require another pathfinding class.

func _field_for_pursuer(pursuer: GridActor) -> PackedInt32Array:
	if _mode == MODE_SCATTER:
		return _field_for_target(_scatter_target(pursuer.role))

	match pursuer.role:
		"hunter":
			return player_field
		"ambusher":
			return _field_for_target(_projected_player_target(4))
		"weaver":
			var projected := _projected_player_target(2)
			var hunter_delta := projected - hunter.cell
			return _field_for_target(
					MazeRulesScript.nearest_walkable(
							board.rows,
							projected + hunter_delta,
							projected))
		"drifter":
			var distance := _manhattan(pursuer.cell, player.cell)
			return _field_for_target(_scatter_target(pursuer.role)) \
					if distance <= 5 else player_field
	return player_field

Make the game modes explicit

The starter alternates twelve seconds of chase with four seconds of scatter. A power pellet interrupts that schedule for six seconds of frightened mode:

A finished game may animate a captured pursuer back to a home cell through a separate returning state. This small starter teleports it to spawn so the tutorial stays on navigation and mode boundaries.

func _set_mode(next_mode: StringName) -> void:
	_mode = next_mode
	_mode_elapsed = 0.0
	if _mode == MODE_FRIGHTENED:
		flee_field = MazeRulesScript.build_flee_field(
				board.rows, player_field)
	else:
		flee_field = PackedInt32Array()
	for pursuer: GridActor in pursuers:
		pursuer.frightened = _mode == MODE_FRIGHTENED
	_update_hud()

Reserve the chosen target before the next pursuer moves

Current occupancy is not enough. Two pursuers can start in different cells and choose the same empty neighbor during the same frame.

The update builds one occupied set, processes pursuers in a stable order, and adds every accepted target before the next choice:

The claims are ephemeral. The set is rebuilt on the next update because this is real-time next-cell selection, not turn ownership. The reservation-table guide owns persistent claims, simultaneous turns, confirmation, and undo.

func _update_pursuers(delta: float) -> void:
	for pursuer: GridActor in pursuers:
		if pursuer.advance(delta):
			_check_contacts()

	var occupied := {}
	for pursuer: GridActor in pursuers:
		occupied[pursuer.motion_target_cell()] = true

	for pursuer: GridActor in pursuers:
		if pursuer.is_moving:
			continue
		occupied.erase(pursuer.cell)
		var next := _choose_pursuer_step(pursuer, occupied)
		if next != pursuer.cell and pursuer.begin_move(next):
			occupied[next] = true
		else:
			occupied[pursuer.cell] = true

Treat the side tunnel as an edge

The middle row is open at both ends. neighbor() maps a horizontal step beyond one edge to the cell on the other edge:

If movement wraps but the field does not, the tunnel looks open and the AI treats it as a wall.

• Use the same topology for player legality.
• Use it for pursuer legality.
• Use it for Dijkstra expansion.
• Use it for direction reconstruction.
• Use it for interpolation across the screen edge.

func neighbor(cell: Vector2i, direction: Vector2i) -> Vector2i:
	var next := cell + direction
	if direction.y == 0 and _wrap_rows_cache.has(cell.y):
		if next.x < 0:
			next.x = _grid_size_cache.x - 1
		elif next.x >= _grid_size_cache.x:
			next.x = 0
	return next

Collect pellets only after the move commits

Pellet state changes at the same cell boundary that updates navigation:

Interpolation frames never collect the same pellet repeatedly. A power pellet changes score and mode in one transaction.

func _collect_player_cell() -> void:
	var collected := board.consume_at(player.cell)
	if collected == &"pellet":
		_score += 10
	elif collected == &"power":
		_score += 50
		_frightened_remaining = 6.0
		_set_mode(MODE_FRIGHTENED)

	if board.collectible_count() == 0:
		_round_over = true
		_update_hud("Maze clear. Press R to run the scene again.")
	else:
		_update_hud()

Resolve contact from the current mode

The starter checks same-cell contact and actors crossing in opposite directions. The active mode decides the outcome:

The outcome does not depend on which sprite callback happened first.

func _check_contacts() -> void:
	if _round_over:
		return
	for pursuer: GridActor in pursuers:
		var same_cell := pursuer.cell == player.cell
		var crossed := pursuer.cell == player.target_cell \
				and pursuer.target_cell == player.cell
		if not same_cell and not crossed:
			continue
		if _mode == MODE_FRIGHTENED:
			_score += 200
			pursuer.teleport_to(pursuer.spawn_cell)
			_update_hud("%s returned to the maze house." % pursuer.role.capitalize())
		else:
			_lose_life()
		return

What to update, and when

This table is the maintenance contract. Field rebuilds should follow fact changes, not be added to arbitrary render callbacks.

Run the verified starter

The source ZIP contains the exact scene and code shown in this article. Download the Godot 4.7.1 source project, then read the machine-readable verification receipt.

The receipt reports 16/16 checks after the exact ZIP was extracted and rerun. It covers the authored maze, buffered turns, committed cells, shared fields, target policies, flee rescan, no-reverse behavior, dead-end fallback, reservations, tunnel wrapping, collectibles, contact mode, scene startup, local resource dependencies, and the package rerun.

Measurement-gap: this is a correctness receipt, not a performance dataset. It does not measure FPS, throughput, allocations, memory, or commercial-game readiness.

For the larger browser-playable result, open Dijkstra's Ghost. It has four hunters, ten mazes, weighted routes, touch controls, a live field overlay, and a separate public receipt. The starter is not a copy of that product's source.

Common failure modes

Most broken maze chases cross one of the boundaries above. Match the visible symptom to the state contract before replacing the solver.

The player reaches an intersection before the turn is accepted

Input is being tested only on the exact intersection frame. Keep the most recent cardinal request and retry it at every committed cell.

The visible actor is in one cell and the rules use another

World position has replaced grid state. Store cell and target_cell separately; update the authoritative cell only when interpolation completes.

All pursuers stack or form one merged sprite

Shared navigation does not imply shared occupancy. Include moving target cells in the occupied set before the next pursuer chooses.

A pursuer shakes between two corridor cells

The selection rule allows immediate reversal. Exclude the opposite direction during ordinary movement and retry with reversal only if no other move exists.

The ambusher aims into a wall

Normalize the projected target before seeding a field. The starter uses nearest_walkable() with the player cell as a safe fallback.

The tunnel works for the player but not the pursuers

Movement and field expansion have different topology functions. Route both through the same wrap-aware neighbor rule.

The game pauses briefly on every player cell

The field builder is probably recomputing topology inside its inner loop. Cache dimensions and wrap rows once per board revision, use packed queues, and build the flee field only when frightened mode is active.

Where PathForge goes further

This starter has one fixed one-cell movement profile, static topology, uniform cost, and a small number of target fields.

PathForge is being built for the larger capability layer: multi-size clearance, dynamic blockers, tactical movement profiles, scheduled queries, and editor-visible diagnostics. The standalone project above proves the native small-game baseline; PathForge addresses the broader grid-navigation workflow.
